12.0Mpx AI IP security camera PATRONUM PRD312

+ Gift
PROFI SMART IP security camera PATRONUM®, 12.0MPx (4056x3040px) 30FPS, 1/2.8" SONY® STARVIS™ BSI, ULTRA WDR 140dB (HDR), CPU Rockchip RV1126® 2.0TOPS, FIX lens 2.8mm/97°-F1.6, ADAPTIVE IR up to 30m, H.265+, JPEG, RTSP, Onvif, SSL encryption, P2P free, built-in microphone, 4GB EMMC internal memory + SD card slot, 3 streams, webmenu in English, POE or 12VDC power supply, SMART connector, IP67 aluminum alloy for outdoor operation. 24+12 months warranty, Application package, FREE update service. Compatibility Synology, LOXONE, FIBARO and more. Available in white and anthracite. More
Price
246 EUR excl. VAT (297,66 EUR incl. VAT)
Product code
PRD312IP
Specify product selection
Variant does not exist
Bílá Antracit
We look forward to it
Add to favourites Add to compare list Shipping and Payment
Powered by SONY and Rockchip

Key features:

  • native IP camera resolution 12.0Mpx (4056x3040px) with a frame rate of 30FPS
  • high image quality thanks to the SONY® STARVIS™ 1/2.8" large-format CMOS sensor with BSI and HDR
  • powered by a quad-core Rockchip RV1126® CPU with up to 2.0 TOPS! and direct AI support
  • FIX lenses with a wide FOV of 97° and high F1.6 aperture
  • advanced ADAPTIVE IR illumination for night vision up to 30m
  • SMART AI features to detect vehicles, people, their behaviour with perimeter protection
  • ULTRA WDR 140dB for working with extreme lighting conditions
  • built-in sensitive microphone for sound sensing
  • multistreaming - 3 real-time streams with user-definable resolution
  • OnviF, RTSP and JPEG streams for maximum compatibility
  • advanced video compression H265, H264, H265+, H264+
  • power supply with active POE IEEE 802.3af or 12V DC
  • built-in 4GB internal memory for pictures + microSD card slot up to 1000GB
  • P2P online remote monitoring without the need to set up a public IP (FREE operation)
  • trailing SSL encryption of transmissions for maximum security
  • wEB control menu in Czech
  • multiple Private Masks feature for privacy
  • antivandal aluminium alloy DOME with IP67 and IK10 protection for outdoor operation -25°C~+60°C
  • SMART conetcor for IP67 certified installation
  • compatible with LOXONE, FIBARO and Synology NAS
  • sophisticated manuals and technical support from the Czech PATRONUM® brand
  • FREE 36 months warranty + lifetime customer support + update service
  • FREE Mobile App Bundle for Android, Apple and PC Windows, MAC
  • FREE Installation accessories dowels and screws + SMART connector
  • IP camera can work alone or with NVR PATRONUM any camera system can be built

cmos_SONY

SENSING CHIP - the most important component

The camera features an extremely sensitive LOWLUX SONY Starvis™ 1/2.3" 1/2.3" scanning chip with 30FPS smooth images. Thanks to BSI technology and a real WDR of 140dB, we guarantee crystal clear images and colour sensing even at very low light levels (street lighting). If you are looking for top-quality images in all conditions, this PATRONUM® IP security camera is the obvious choice for outdoor and indoor use.
cmos_SONY

PROCESSOR - speed and economy

The IP camera is equipped with a very powerful processor Rockchip RV1126®, which incorporates a quad-core CPU based on the ARM Cortex-A7 architecture, giving it very solid performance for managing all tasks. The integrated graphics processing unit (GPU) takes care of precise graphics processing and support for smooth user interface management. The RV1126 is also equipped with a special AI acceleration module that enables efficient processing of AI-related tasks. This core can achieve performance on the order of 2 TOPS (tera operations per second), enabling fast on-device processing of AI models and enabling precise scene evaluation based on SMART detection.
irreflektor

Adaptive INFRA SIGHT - it can see in the dark, you can't

In situations of real darkness, infrared is activated ADAPTIVE spotlight, which is automatically controlled and consists of LEDs equipped with lenses with varying degrees of light scattering. This innovative reflector is capable of dynamically adjusting its power and light intensity in real time depending on the specific needs of the scene being captured. The key feature of this system is its adaptive capability - an intelligent power control algorithm that analyzes the image data acquired by the camera sensor and adjusts the infrared lighting output based on that.
objektiv_FIX

HD Fixed LENS F1.6 - sharp at every focus

A lens with a focal length of 2.8mm, corresponding to a horizontal field of view (FOV) of 97°, is responsible for sharp images in a variety of scenes and excellent light transmission of F1.6. This lens is factory set to focus from 0.5 metres to infinity, meaning that no matter which direction the camera is pointed or what the scene looks like, the image will always be perfectly sharp within this range. Despite the relatively wide angle of view , there is no distortion or "barrel-like" distortion of the image that we know from cheaper security cameras. This is further enhanced by another excellent security camera feature - distortion compensation, which can be activated within the camera settings.
AI

SMART DETECTION - advanced video analytics driven by artificial intelligence

This IP security camera is recessed by advanced artificial intelligence (AI) algorithms to evaluate the scene being captured and thanks to them, it can detect human movement, vehicles and their behavior based on user settings within set rules - sensitivity, area and all according to a 24/7 calendar. After optimal settings, the camera turns into an autonomous machine that evaluates the image. Thanks to this, the user is always informed about current events in a timely manner . This feature also increases the number of days of recording on the repository by several times and saves time when browsing the record. The AI detection function can also be combined with email alerts, PUSH notifications to your mobile phone, etc.
wdr

Real ULTRA WDR 140dB - no more backlight problems

WDR (Wide Dynamic Range) is a technology used in digital image processing that allows you to capture details in scenes with a wide range of brightness levels, from very dark to very bright areas. Traditional cameras often struggle to show details in such scenes because the sensor is unable to capture details in high- and low-light areas at the same time. WDR technology solves this problem by combining multiple exposures for different light levels into a single, balanced image. This allows you to see details in dark areas without overexposing the bright parts of the scene.
h265

H.265+ - state-of-the-art compression

High Efficiency Video Coding (HEVC, also referred to as H.265+) is a state-of-the-art standard video stream compression. The H.265+ format reduces bitrate to 80% while maintaining demonstrably the same image quality compared to its H.264 predecessor. This enables the transmission of twice the image quality at the same data rate as before. With this IP camera, you have a choice and can switch to legacy H.264 and MJPEG compression formats.
poe

PoE - power over Ethernet

The PoE power function greatly simplifies installation and increases the convenience of operating security cameras. This IP camera can be powered directly over a data cable up to 100 meters (CAT5e), eliminating the need for separate wires for data and power by using active PoE according to the IEEE 802.3af standard. In addition, thanks to the presence of a DC 2.5/5.5 power connector on the camera cable, it is possible to provide power from a 12V DC power supply.
networkfunctions

ON-LINE - applications and network functions

When you purchase an IP camera, you automatically get a FREE suite of applications that are in English and allow for online management and monitoring. It is a professional application for PC/MAC and mobile devices designed for easy search, setup, management on all common operating systems Windows, iOS, Android. The device can also communicate with the most widely used NAS servers, surveillance centers and online services of various types and brands (Hikvision, Milesight or Synology NAS). Among the most important are Onvif and the general RTSP protocol. Other supported protocols are TCP, UDP, IP, HTTP, FTP, SMTP, DHCP, DDNS, PPPoE, NTP, RTP, RTSP, UPnP and direct P2P connection without the need to set up a public IP address. You can send the alarm image to Email, FTP and Google Drive cloud.
montaz

EASY ASSEMBLY

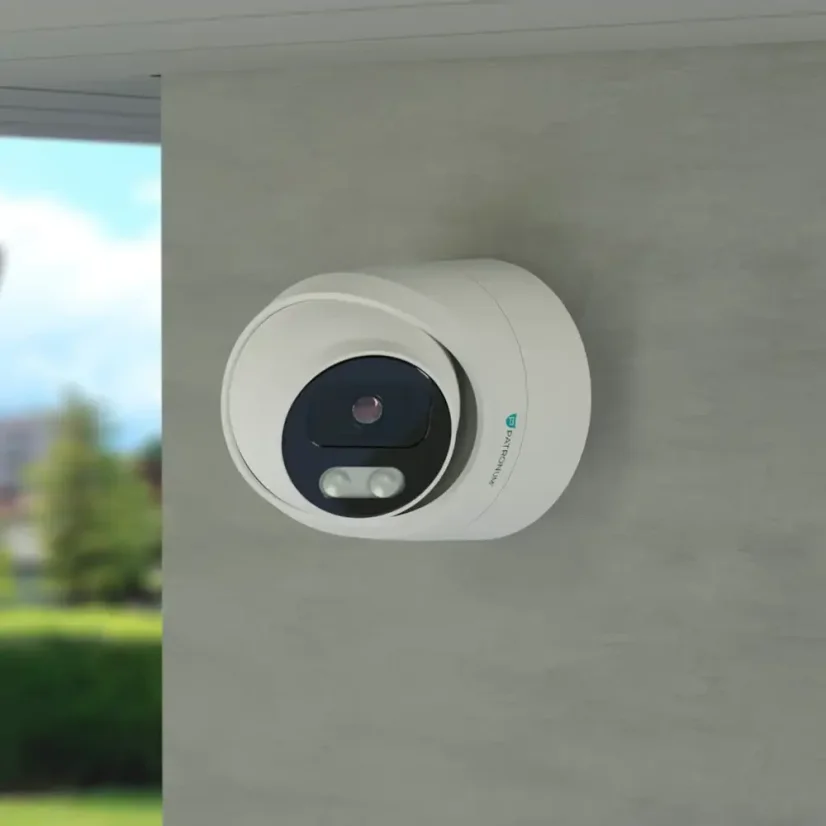

Thanks to the 3D mount/3D base, the camera can be mounted on walls and ceilings and adjusted to virtually any angle. Thanks to its high IP67 protection and aluminium body, it is designed for indoor and outdoor installations, where it can withstand any weather conditions all year round. The length of the supply cable is 25cm and passes through the middle of the body, so the camera can be mounted directly over the prepared hole into which the cable is inserted. Screws and dowels are included. The camera is also compatible with the cable box and spacer bracket found in the accessories below.
patronum

PATRONUM® - warranty and support

By purchasing this IP camera you get a reliable device of the Czech brand PATRONUM®, which has been fully tested with proven results. Each product also undergoes rigorous quality control and testing prior to delivery to ensure that it is functional and meets the declared parameters. Our goal is to deliver quality products you can rely on, which is why we offer a 24+12 month warranty. With your purchase you also get FREE lifetime customer support + update service and an App Pack for Android, Apple and Windows PC, MAC.
Parameters
Image sensor 1/2.3" SONY® STARVIS™ BSI CMOS WDR
Resolution 12.0Mpx (4056x3040px)
Video komprese H.264 , H.264+ , H.265 , H.265+ , JPEG , AVI , MJPEG
Audio komprese G711A , AAC
Čas závěrky 1/3 - 1/100000 s
Minimální osvětlení Color: 0.01 Lux , B/W: 0 Lux s IR
Ohnisko objektivu 2.8mm (96°)
Úhel záběru Vertikální FOV 57° , Horizontál FOV 97°
Světelnost objektivu F1.6
Typ objektivu Fixní
Reflektor 2x42µ SMD ADAPTIVE IR LED
Dosah přísvitu IR do 30m
Režim DEN/NOC Auto , Manuál , Dle plánu
Ethernet RJ-45 (10/100Base-T)
Net protokoly TCP/IP , IPv4/v6 , ICMP , HTTP , HTTPS , FTP , DHCP , DNS , DDNS , RTP , RTSP , RTCP , PPPoE , NTP , SMTP , UDP , SNMP , Qos, 802.1x
ONVIF 19.12 (Profile S/T/G)
Primární stream 2304x1296@30fps , 2688x1512@30fps , 2592x1944@30fps , 3840x2160@30fps, 3072x2048@30fps , 4056x3040px@30fps
Sekundární stream 1920x1080@30fps, 1280x720@30fps
Terciální stream 1280x720@25fps, 720x480@25fps, 352x288@25fps
P2P Ano - dle SN
WEB prohlížeče Plug-in required live view: IE 10+ , Plug-in free live view: Chrome 57.0+, Firefox 52.0+ , Local service: Chrome 57.0+, Firefox 52.0+
Software PATRONUM iVMS - WIN/MAC , BitVision - iOS/Android
Jazyk Angličtina , Bulharština , Polština , Arabština , Němčina , Ruština , Francouzština , Korejština , Portugalština , Japonština , Turečtina , Španělština , Hebrejština , Italština , Nizozemština , Čeština , Vietnamština
Zabezpečení přenosů SSL - koncové šifrování , CAPCHA
AI funkce Vniknutí do oblasti (na základě postavy a vozidla) , Virtuální hranice (na základě postavy a vozidla) , Detekce lelkování , Detekce shromažďování osob , Detekce pohybu , Detekce vstoupení a vystoupení z oblasti , Detekce obličeje
Detekční události Záznam , PUSH notifikace aplikace , Email , FTP , Cloud , Pop-up okno v aplikaci
Konfigurace obrazu Jas , Kontrast , Ostrost , Zrcadlení , Vyvážení bílé , Anti Flicker , Kompenzace zkreslení
WDR 140 dB
BLC Ano
ROI Ano
HLC Ano
3DNR Ano
Privátní masky 3 zóny
Koridor mód Ano
Defog mód Ano
Napájení POE IEEE 802.3af , 12V DC
Vestavený mikrofon Ano
Spotřeba +-5W (200Kč/rok)
Krytí IP67
Provozní teplota -25°C~ +60°C, max RH 95%
Materiál šasi Hliníková slitina
Tvar kamery DOME
Barva kamery Bílá Antracit
Download
i65858722ba8d3-manual-aplikace-bitvision-1-2.pdf (pdf, 330.9 kB)
465858722e8e05-obecny-manual-k-ip-kameram-patronum.pdf (pdf, 8 MB)
c6585872336306-formatovani-adres-streamu-rekordery-patronum.pdf (pdf, 102.9 kB)
l66163ccbdbff8-datasheet-prd3xip.pdf (pdf, 1 MB)
