PROFI AI IP DOME security camera PATRONUM®
- 5.0Mpx (2592x1944px) 30FPS
- Integrated PATRONUM™ AI
- 1/2.8" SONY® STARVIS™ sensor 0.003LUX, BSI, 120dB WDR
- Fixed lens 2.8mm/98°- F1.6
- ADAPTIVE IR and WL up to 30m
- H.265+, JPEG, RTSP, RTMP, Onvif, SSL encryption, free P2P
- Built-in microphone
- 4 GB internal memory + SD slot, menu in Czech
- POE or 12VDC power supply
- Vandal-proof aluminium alloy with IP67 protection
- 24+12 month warranty, application package, FREE update service
- Compatible with Synology, LOXONE, FIBARO and others.
Price
122,65 EUR excl. VAT (148,41 EUR incl. VAT)
Product code
PRD35IPDG2
Key features:
- Native resolution of the IP camera 5.0Mpx (2592x1944px) with a frame rate of 30FPS
- High-quality image thanks to SONY® STARVIS™ CMOS sensor with a large diagonal of 1/2.8", BSI and HDR
- Powered by a Rockchip RV1126® quad-core CPU with up to 2.0 TOPS performance and direct AI support
- FIX lenses with a wide angle of view FOV 97° and high brightness F1.6
- Advanced ADAPTIVE IR illumination for night vision up to 30 m
- SMART AI functions for detecting vehicles, people and their behaviour with perimeter protection
- ULTRA WDR 140dB for working in extreme lighting conditions
- Built-in sensitive microphone for audio recording
- Multistreaming - 3 real-time streams with user-definable resolution
- OnviF, RTSP, RTMP and JPEG streams for maximum compatibility
- Advancedvideocompression H265, H264, H265+, H264+
- Power supply via active POE IEEE 802.3afor 12V DC
- Built-in 4 GB internal memory for images + microSDcard slotup to 1000 GB
- P2P online remote monitoring without the need to set up a public IP (FREE operation)
- End-to-end SSL encryption of transmissions for maximum security
- WEB control menu in Czech
- Multiple privacy masks to maintain privacy
- Aluminium alloy BULLET with IP67 protectionfor outdoor operation -25°C~ +60°C
- SMART connectors for certified IP67 installation
- Compatible with LOXONE, FIBARO and Synology NAS
- Detailed instructions and technical support from the Czech brandPATRONUM®
- FREE 36-month warranty + lifetime customer support +update service
- FREE application package for Android and Apple mobile devices and Windows and MAC PCs
- FREE installation accessories , wall plugs and screws + SMART connector
- The IP camera can operate independently or with NVR PATRONUM can be used to build any camera system
IMAGE SENSOR - the most important component
The camera features an extremely sensitive SONY Starvis™ LOWLUX image sensor with a diagonal of 1/2.8" and 30FPS with smooth image. Thanks to BSI technology and real WDR 120dB, we guarantee crystal clear images and colour recording even in very low light conditions ( street lighting). If you value top-quality images in all conditions, this PATRONUM® IP security camera is the clear choice for both exterior and interior use.
PROCESSOR - speed and savings
The IP camera is equipped withaverypowerful Rockchip RV1126®processor, which features a quad-core CPU based on the ARM Cortex-A7 architecture, giving it very solid performance for managing all tasks. The integrated graphics processor (GPU) then takes care of accurate graphics processing and support for smooth user interface management. The RV1126 is also equipped with a special AI acceleration module that enables efficient processing of artificial intelligence-related tasks. This core can achieve performance in the order of 2 TOPS (tera operations per second), which enables fast processing of AI models directly on the device and allows for precise scene evaluation based on SMART detection.
Adaptive INFRA LIGHT - it sees even in the dark, but you don't
In situations of complete darkness, the infrared ADAPTIVE HYBRID reflector is activated, which is automatically controlled and consists of LEDs equipped with lenses with varying degrees of light dispersion. This innovative reflector is capable of dynamically adjusting its power and light intensity in real time depending on the specific needs of the scene being captured. The key feature of this system is its adaptive capability – an intelligent power control algorithm that analyses the image data obtained by the camera sensor and adjusts the infrared lighting output accordingly.
HD fixed F1.6 LENS - sharp at every focal length
A lens with a focal length of 2.8 mm, corresponding to a horizontal field of view (FOV) of 97°, is responsible for sharp images in various scenes and excellent light transmission of F1.6 . This lens is factory-set to focus from 0.5 metres to infinity, which means that regardless of the direction in which the camera is pointed or what the scene being captured looks like, the image will always be perfectly sharp within this range. Despite the relatively wide angle of view , there is no distortion or "barrel" deformation of the image, which we know from cheaper security cameras.This fact is further enhanced by another excellent feature of the security camera - distortion compensation, which can be activated in the camera settings.
SMART DETECTION - advanced video analytics powered by artificial intelligence
This IP security camera is equipped with advanced artificial intelligence (AI) algorithms for evaluating the captured scene and, thanks to these, it can detect human movement, vehicles and their behaviour within the set rules - sensitivity, area, and all this according to a 24/7 calendar. After optimal settings, the camera becomes an autonomous machine evaluating the captured image. This ensures that the user is always informed about current events in a timely manner . This feature also increases the number of days of recording on the storage device several times over and saves time when browsing through the recording. The AI detectionfeature can also be combined with alerts via email, PUSH notificationsto a mobile phone, etc.
Real ULTRA WDR 140dB - no more problems with backlighting
WDR (Wide Dynamic Range) is a technology used in digital image processing that allows you to capture details in scenes with a wide range of brightness levels, from very dark to very bright areas. Traditional cameras often have trouble displaying details in such scenes because the sensor is unable to capture details in both high and low light areas at the same time. WDR technology solves this problem by combining multiple exposures for different light levels into one balanced image. This allows you to see details in dark areas without overexposing the bright parts of the scene.
H.265+ - state-of-the-art compression
High Efficiency Video Coding (HEVC, also known as H.265+) is the latest video stream compression standard. The H.265+ format reduces data flow by 80% while maintaining demonstrably the same image quality as its predecessor, H.264. This allows you to transmit twice the image quality as before with the same data requirements. With this IP camera, you have a choice and can also switch to the older H.264 and MJPEG compression formats.
PoE - Power over Ethernet

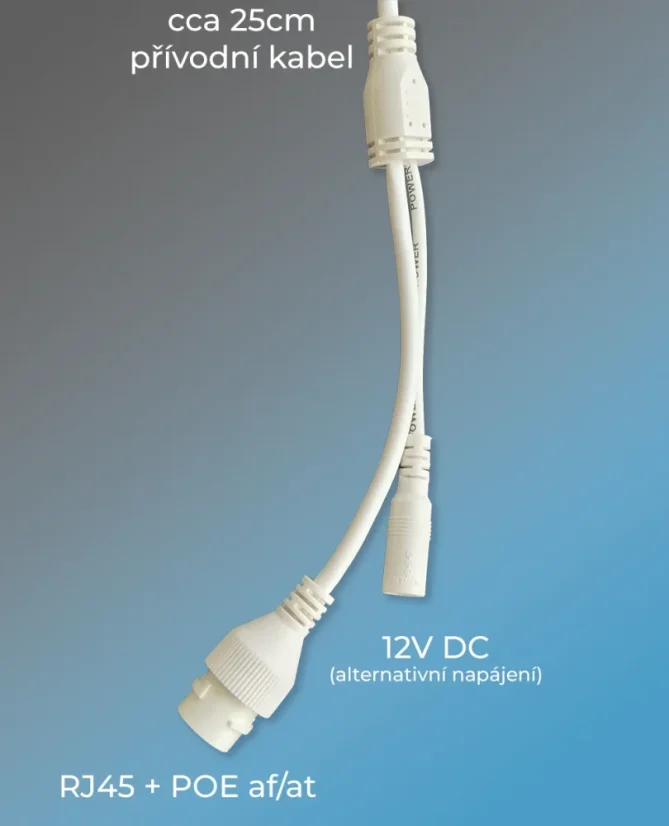

The PoE power supply function greatly simplifies installation and increases the convenience of operating security cameras. This IP camera can be powered directly via a data cable at a distance of up to 100 metres (CAT5e), eliminating the need for separate data and power cables, thanks to the use of active PoE according to the IEEE 802.3af standard. In addition, thanks to the presence of a 2.5/5.5 DC power connector on the camera cable, it is also possible to provide power from a 12V DC source.
ON-LINE - applications and network functions
When you purchase an IP camera, you automatically receive a FREE application package in Czech that allows for online management and monitoring. These are professional applications for PC/MAC and mobile devices designed for easy search, setup, and management on all common operating systems, including Windows, iOS, and Android. The device can also communicate with the most widely used NAS servers, surveillance centres and online services of various types and brands (Hikvision, Milesight or NAS Synology). The most important ones include Onvif and the general RTSP protocol. Other supported protocols include TCP, UDP, IP, HTTP, FTP, SMTP, DHCP, DDNS, PPPoE, NTP, RTP, RTSP, RTMP, UPnP, and direct P2P connection without the need to set up a public IP address. Alarm images can be sent to email, FTP, and Google Drive cloud storage.
EASY INSTALLATION
Thanks to the 3D mount/3D base, the camera can be mounted on a wall or ceiling and adjusted to virtually any angle. With a high IP67 rating and aluminium body, it is designed for indoor and outdoor installation, where it can withstand any weather conditions throughout the year. The power cable is 25 cm long and passes through the centre of the body, so the camera can be mounted directly above a prepared hole into which the cable is fed. Screws and wall plugs are included in the package. The camera is also compatible with a cable box and spacer bracket, which can be found below in the accessories section.
