PRNVR2580HPOE16 — 25 Channels, 16 PoE Ports
Network video recorder with integrated PoE (16× RJ45). AI analytics run directly on the recorder — works even with cameras that have no on-board AI. ONVIF Profile S/T/G — compatible with any IP camera. Free P2P mobile access via BitVision.
Kompatibilní příslušenství.
Co skutečně umí.
Centralized recording for your camera system

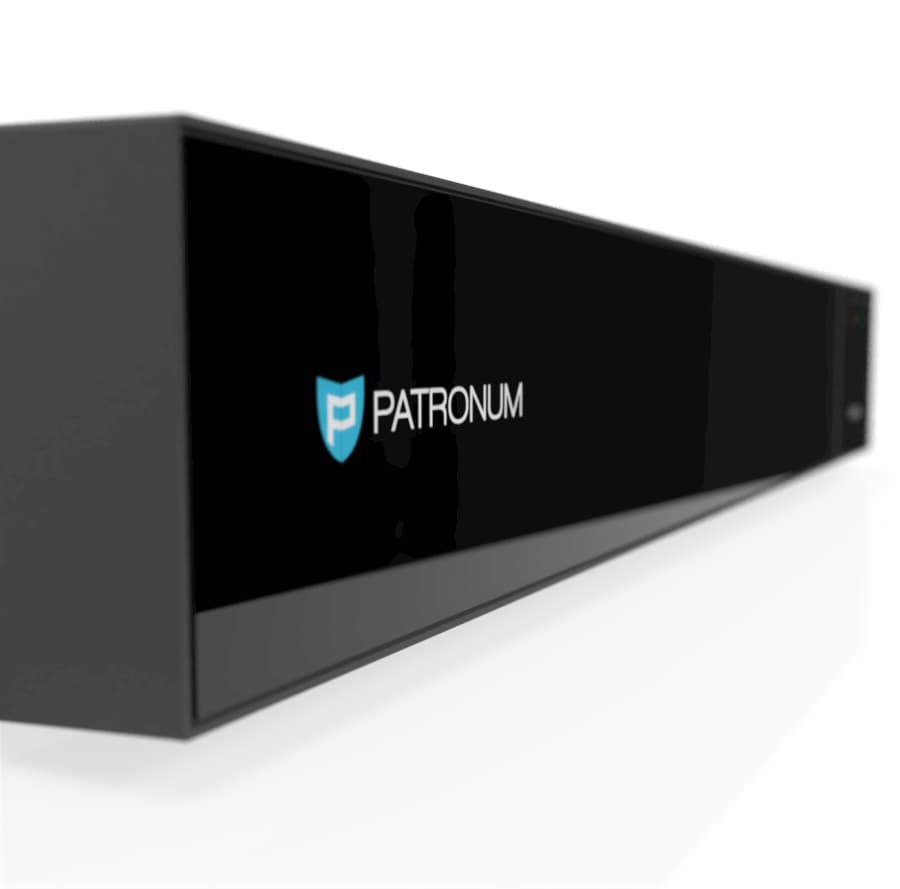

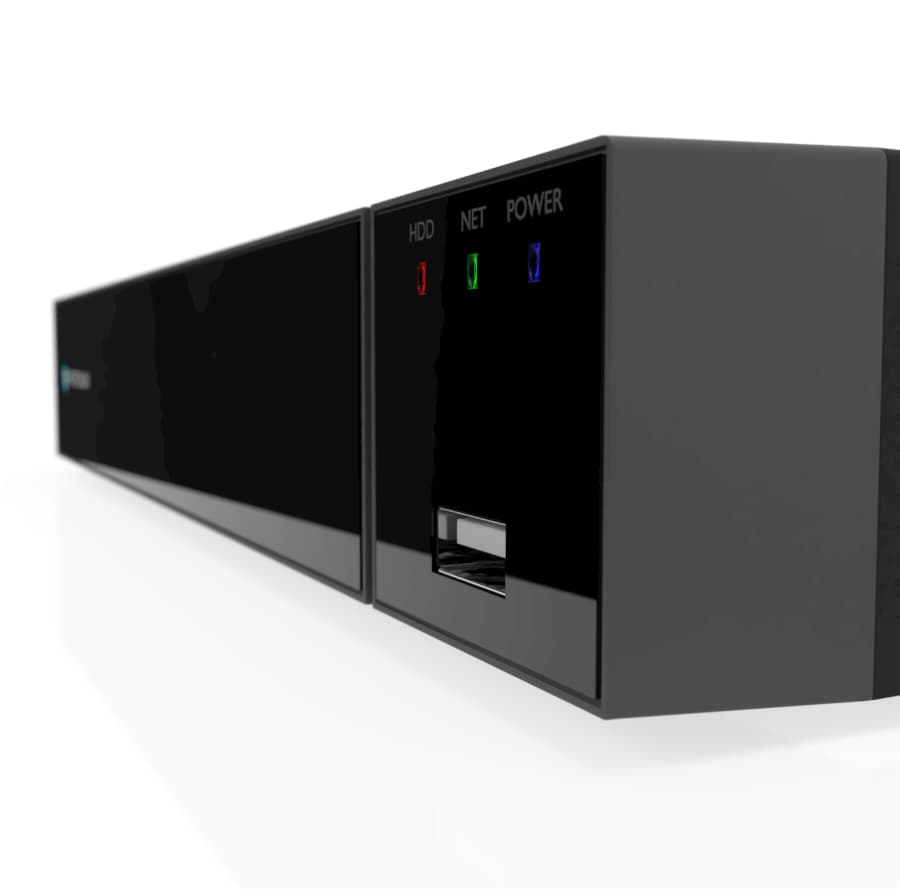

The PRNVR2580HPOE16 is a 25-channel IP NVR with 16 integrated PoE ports. It centralizes recording, viewing and management for the entire camera system in one device with its own user interface.

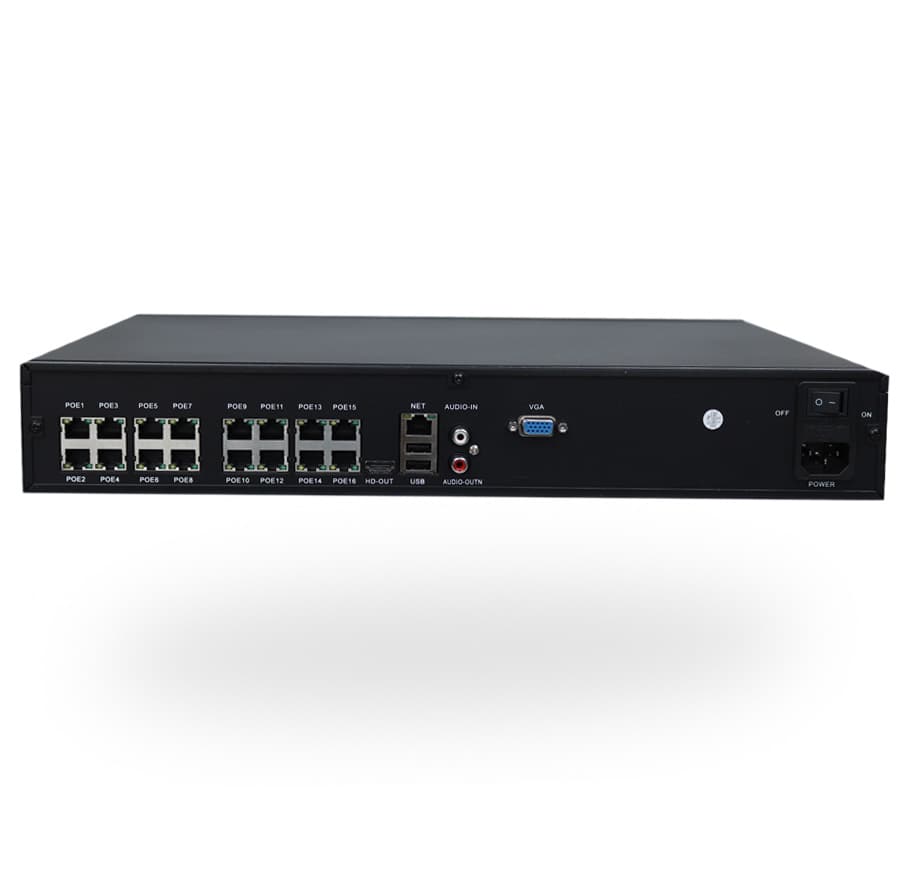

Integrated PoE ports (16× RJ45)
Cameras connect directly via the integrated PoE ports — no external switch, no separate power supply at each camera location. A single UTP cable carries data and power. Ideal for installations where the network infrastructure is built around the recorder.
AI analytics on the recorder
The PRNVR2580HPOE16 runs AI analytics on the recorder itself — not on the cameras. This means cameras without their own AI can detect people, vehicles, line crossing and loitering. AI runs on the feed from any connected camera, extending the capability of your existing cameras without replacement.
H.265+ compression for longer retention
The recorder stores video in H.265+ compression — up to 50% storage savings vs. H.264 at the same image quality. For a typical 4-camera 5 MP system recording 24/7, plan approximately 1 TB per month per camera.
ONVIF compatibility
The recorder supports ONVIF Profile S/T/G (19.12 Profile S/T/G) — the industry standard for IP cameras. Connect cameras from any manufacturer that supports ONVIF (PATRONUM, Uniview, Bosch, etc.). No vendor lock-in.
Postavený pro tisíce hodin záznamu. Bez ztráty kvality.
Detekce na NVR
AI běží v rekordéru — pracuje i s kamerami bez vlastní AI. Push notifikace na mobil.
Bez veřejné IP
Mobile aplikace BitVision se připojí přes unikátní SN — bez port forwardingu.
Funguje s libovolnou kamerou
ONVIF Profile S/T/G — připojíte i kamery jiných výrobců přes standardní protokol.
Every parameter, in detail.
Zapadne do toho, co už máte.
Co najdete v krabici.
Na co se zákazníci ptají nejčastěji.
Máte dotaz na konfiguraci nebo HDD? Naši technici poradí v pracovní dny 8:00–17:00.
Kontaktovat podporuCo říkají zákazníci, kteří si produkt už koupili.
Zatím žádné recenze. Buďte první po nákupu.
