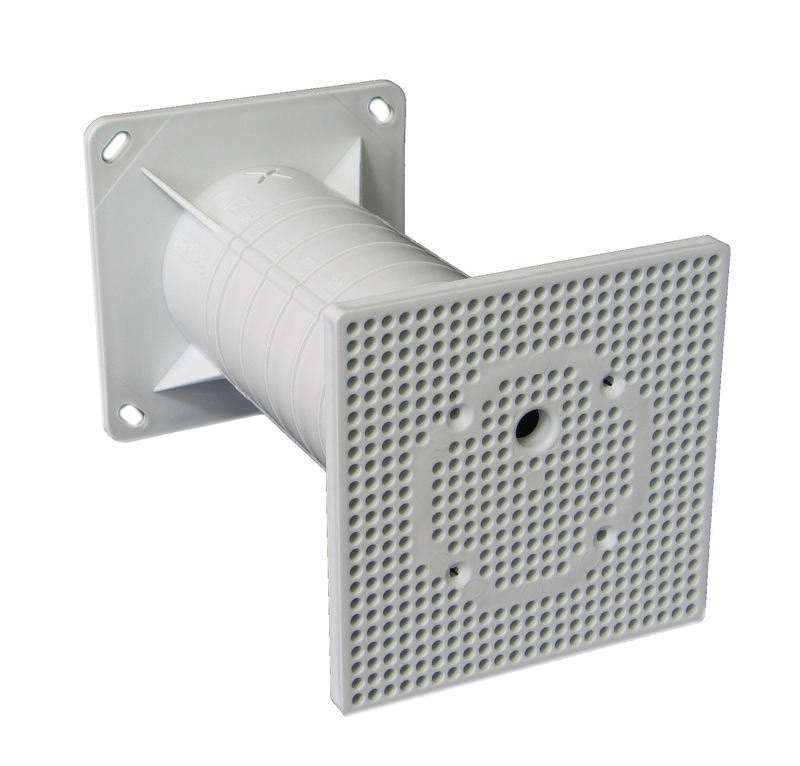

Mounting plate for insulation

It is used to install security cameras on insulated building facades, its construction eliminates the formation of thermal bridges.

The mounting plate enables the installation of the device with a thickness of the insulation layer of 50 - 200 mm.

The mounting area for the device is 120 x 120 mm.

The package includes dowels, screws for attaching the carrier to the wall and screws for mounting the plate.

dimension: 120 x 120 x 200 mm
material: self-extinguishing halogen-free PP
temperature resistance: -25 to +60 °C
load capacity: max. 4 kg
